• Male Threads Brass Bibcock Brass Water Faucet 1/2inch-3/4inch Slow Open S505 11
Male Threads Brass Bibcock Brass Water Faucet 1/2inch-3/4inch Slow Open S505 11

Male Threads Brass Bibcock Brass Water Faucet 1/2inch-3/4inch Slow Open S505 11

Product Details:

Place of Origin: China
Brand Name: TASAN
Model Number: S505 11

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs Per Week
Get Best Price Contact Now

Detail Information

Product Name: Brass Bibcock , Brass Water Faucet 1/2"-3/4" Slow Open Material: Brass
Handle Material: Brass Port Size: 1/2''~3/4''
Working Temperature Min./Max.: -20°C-80°C Pressure Rating:: PN16/232psi -- 1/2"-3/4" (DN15-20mm)
Thread: ISO 228「equivalent To DIN EN 10226-1 And 8S21」 Power: Manual
High Light:

Male threads Brass Bibcock

,

Brass Water Faucet 1/2inch

,

Brass Bibcock 3/4inch

Product Description

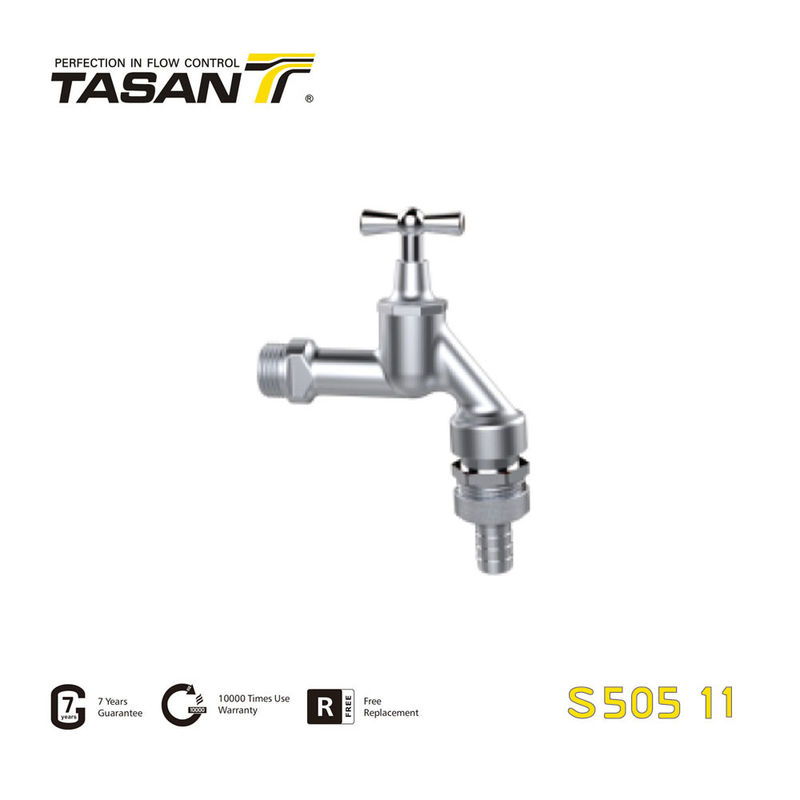

S505 11 Brass Bibcock , Brass Water Faucet 1/2"-3/4" Slow Open

● Descriptions:

Male threads
T handle in brass
Body in sandblasted/chrome-plated brass Hose connection in brass
Double O-rings safe stem - PTFE seats

Minimum and maximum working temperatures: -20°C-80°C

Threads: ISO 228(equivalent to DIN259 and BS2779)

The thread, materials, etc. can be customized.



● Pressure rating:

PN16/232psi -- 1/2"-3/4" (DN15-20mm)



● Working temperature Min./Max.:

-20°C-80°C



Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Professional surface: Polishing chrome plating, grade 9 electroplating standard.The surface is as smooth as a mirror.

valve stem: Processed by hot-rolled copper bar, which has strong hardness and can effectively prevent deformation and fracture when the valve is switched.

Spool: Made of high grade brass with smooth surface and good sealing performance.

Handle: The handle is well designed, ergonomic, good to hold and easy to open.

Seal ring: Imported EPDM seal ring and spool double seal prevent leakage

Male Threads Brass Bibcock Brass Water Faucet 1/2inch-3/4inch Slow Open S505 11 0

Part Code Size Working Prssuer
Bar
Pcs/Carton
S50511C303 1/2’’ 42 60
S50511C304 3/4’’ 47 40



● Company Profiles



TASAN,one of the best worldwide brand of Flow Tech products. Manufacturing with the glorious history over 30 years, We promise to customers the 7 years quality warranty and the cooperation with the best known insurance company PICC for international quality accident. Ensure the most cost-effective products and safeguard service for our agents worldwide. Our success lies in the satisfaction of each of our valued customers.
TASAN,insisting 100% original own-design,Long-term strategic partnership with the famous European valve manu facturers and the registered laboratories for R&D and testing.
TASAN,has an excellent international team of marketing.
Join in TASAN, we must be your best choice.



Tasan's Motto

We Never Stop Pursuing Perfection


Tasan's Products:
Valvas And Fittings For Construction Work And Industrial Equipment,Sanitary Ware.


Tasan's Market:
Overseas And Domestic


Tasan's Sales Methods:
BRAND Agency,OEM,ODM



Factory Construction Area:
900.000 Sq.ft.


Research And Development Team:
20 Research And Design Specialists.


SALES NETWORK
More Than 45 Countries Including The US, Canada, Germany, the Uk, The Netherlands,ltaly, Russia,dubai



● Our Package Details



TASAN logo forged in valve body.

TASAN logo stamped or printed on handle.

Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.

PE plastic ECO bag.

Product spec. label sticked on the side of master carton.

TASAN special packing tape.

Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.





FAQ



Q: How long is your product guarantee period?

A: We have Seven-year guarantee and 24 hours full-time service.



Q: What is your MOQ?

A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".



Q: Can you accept OEM and ODM?

A: TASAN has our own BRAND Agency. OEM and ODM do as well



Q: How long is your delivery time?

A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
