• Waterworks Brass Handle Ball Valve Full Flow 360psi PN25 Ball Valve 15A
Waterworks Brass Handle Ball Valve Full Flow 360psi PN25 Ball Valve 15A

Waterworks Brass Handle Ball Valve Full Flow 360psi PN25 Ball Valve 15A

Product Details:

Place of Origin: China
Brand Name: TASAN
Certification: CE
Model Number: 15A

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs Per Week
Get Best Price Contact Now

Detail Information

Product Name: Brass Ball Valve Material: Brass
Port Size: 1/2"-4" Connection Type: Female X Female
Working Temperature Min./Max.: –20°C ~150°C (-4°F~302°F) In Absence Of Steam Pressure Rating:: PN40/600psi -- 1/4"~1" PN25/360psi --11/4"~2" PN16/230psi -- 21/2"~4"
Thread: ISO 228「equivalent To DIN EN 10226-1 And BS21」 Power: Manual
High Light:

Brass Handle Ball Valve 360psi

,

Waterworks Brass Handle Ball Valve

,

Waterworks PN25 Ball Valve

Product Description

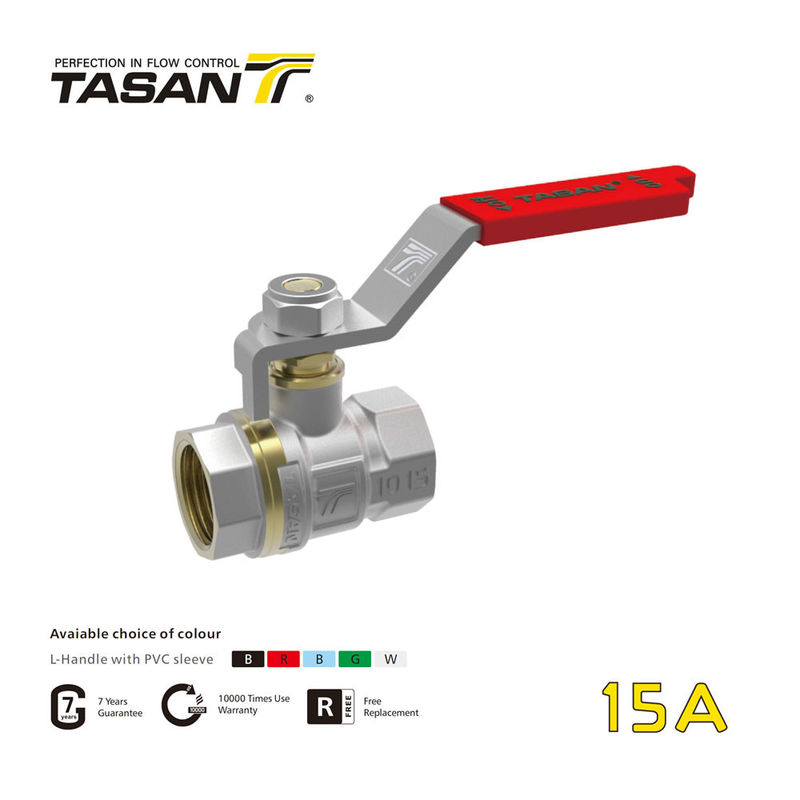

15A Brass Water Ball Valve, Full Flow



15 series BV is the excellent quality design for High-low temperature & High pressure conditions, suitable for domestic and commercial plumbing system, industrial application, sanitary, heating & air-condition system, pneumatic systems, waterworks, oil pipelines, gasoline network,saturated steam, used for non aggressive fluid only.



● Pressure rating:

PN40/600psi -- 1/4"~1" (DN8~25mm)

PN25/360psi --11/4"~2" (DN32~50mm)

PN16/230psi -- 21/2"~4" (DN65~100mm)



● Working temperature Min./Max.:

–20°C ~150°C (-4°F~302°F) in absence of steam



● Descriptions:

Full Flow(1/4 turn to open and close)

Nickel-plated Forged brass body

Chrome-plated Machined brass/S.S. ball *

Double 0-ring safe stem -PTFE ball seats(1/4" and 3/8")

TASAN Blowout-proof stem - Minimal 10000 times of use

Designed with adjustable gland and EPDM O-ring(1/2"~4")

TASAN Professional-Antirust handles with S.S. handle screw

Threads: ISO 228「equivalent to DIN EN 10226-1 and BS21」



Waterworks Brass Handle Ball Valve Full Flow 360psi PN25 Ball Valve 15A 0

● Structure Charts

Part Code Size A/mm B/mm C/mm
15ANS301 1/4’’ 39 38 90
15ANS302 3/8’’ 40 38 90
15ANS303 1/2’’ 45 49 90
15ANS304 3/4’’ 51 53 105
15ANS305 1’’ 59 62 115
15ANS306 11/4’’ 69 71 125
15ANS307 11/2’’ 80 78 135
15ANS308 2’’ 93 78 160
15ANS309 21/2’’ 118 116 220
15ANS310 3’’ 128 137 270
15ANS311 4’’ 163 154 270





1 Body High-density Forged Brass
2 Seats Pure PTFE (Polytetrafluoroethylene)
3 Ball Forged Brass/S.S.*
4 Body Cap Forged Brass
5 Stem Machined Brass Rod/S.S.*
6 O-ring EPDM 70 Shore
7 Gland Packing Pure PTFE (Polytetrafluoroethylene)
8 Gland Machined Brass Rod
9 Lever Handle Z.P. Steel Varnished, PVC Sleeve
10 Screw Nut Stainless Steel
11 T Handle Aluminum
12 Name Plate POM
13 Handle Screw Nickel-plated Steel

The thread, color of handle, materials, etc. can be customized.



● Certificates



Waterworks Brass Handle Ball Valve Full Flow 360psi PN25 Ball Valve 15A 1





● Company Profiles



TASAN,one of the best worldwide brand of Flow Tech products. Manufacturing with the glorious history over 30 years, We promise to customers the 7 years quality warranty and the cooperation with the best known insurance company PICC for international quality accident. Ensure the most cost-effective products and safeguard service for our agents worldwide. Our success lies in the satisfaction of each of our valued customers.
TASAN,insisting 100% original own-design,Long-term strategic partnership with the famous European valve manu facturers and the registered laboratories for R&D and testing.
TASAN,has an excellent international team of marketing.
Join in TASAN, we must be your best choice.



Tasan's Motto

We Never Stop Pursuing Perfection


Tasan's Products:
Valvas And Fittings For Construction Work And Industrial Equipment,Sanitary Ware.


Tasan's Market:
Overseas And Domestic


Tasan's Sales Methods:
BRAND Agency,OEM,ODM



Factory Construction Area:
900.000 Sq.ft.


Research And Development Team:
20 Research And Design Specialists.


SALES NETWORK
More Than 45 Countries Including The US, Canada, Germany, the Uk, The Netherlands,ltaly, Russia,dubai



● Our Package Details



TASAN logo forged in valve body.

TASAN logo stamped or printed on handle.

Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.

PE plastic ECO bag.

Product spec. label sticked on the side of master carton.

TASAN special packing tape.

Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
