16bar 232Psi Brass Three Way Ball Valve With Strainer 1/2''~1'' 23X
Product Details:
| Place of Origin: | China |
| Brand Name: | TASAN |
| Certification: | CE |
| Model Number: | 23X |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | TASAN Standard Packing |
| Delivery Time: | 8 working Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 70000pcs Per Week |
|
Detail Information |
|||
| Product Name: | Brass Water Ball Valve With Strainer - Lever Handle | Material: | Brass |
|---|---|---|---|
| Port Size: | 1/2"-1" | Connection Type: | Female X Female |
| Working Temperature Min./Max.: | -10 ℃ To +120 ℃ (from 14℉ To 248℉) | Pressure Rating:: | 16bar (232 Psi) |
| Thread: | ISO 228 | Power: | Manual |
| High Light: | 232Psi Brass Three Way Ball Valve,16bar Brass Three Way Ball Valve,232Psi brass handle ball valve |
||
Product Description

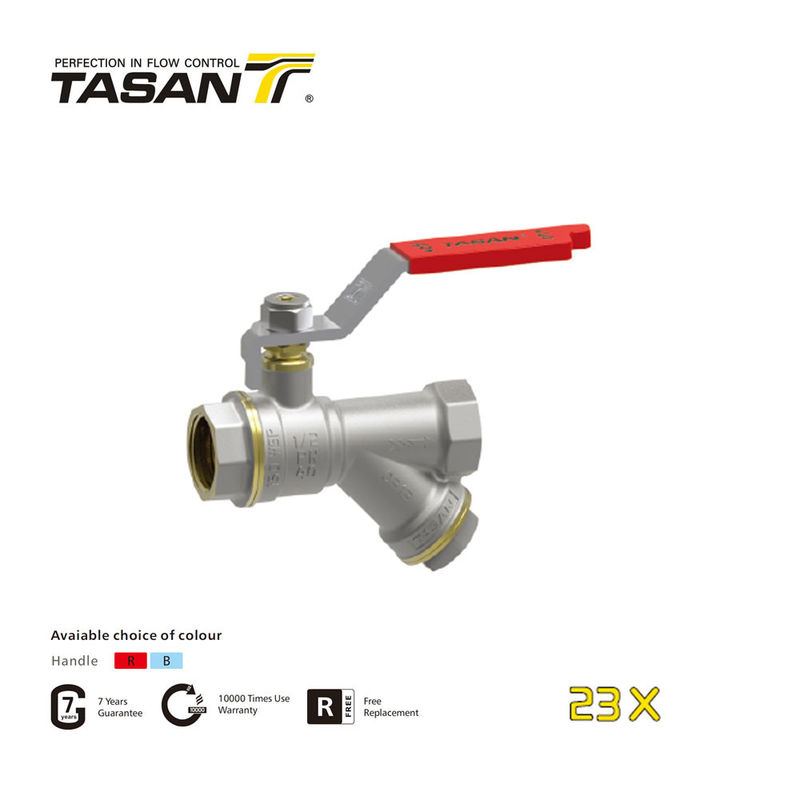

23X Brass Ball Valve Water Ball Valve With Strainer - Lever Handle
● Descriptions:
Nickel-plated Forged brass body
Chrome-plated Machined brass/S.S. ball *
TASAN Professional-Antirust handles with S.S. handle screw
Pressure rating:16bar (232 psi)
Working temperature Min./Max.:-10 ℃ to +120 ℃ (from 14℉ to 248℉)
Threads: ISO 228「equivalent to DIN EN 10226-1 and BS21」
*The thread, color of handle, materials, etc. can be customized.
● Details
Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Valve Ball: Smooth and wear resisiting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
Handle: Plated with decromet, the surface is coated against corrosion, the coating is thickened, the thickness is up to 1.3mm, comfortable using.
O-ring: EPDM & NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.
Stainless Steel Locknut: Internal design of anti-loose, can be used for long time.
Y Strainer Mesh: Stainless steel 304
|
1
|
Body | Forged Brass |
| 2 | Seats | PTFE |
| 3 | Ball | Forged Brass Rod/S.S. |
| 4 | Body Cap | Forged Brass |
| 5 | Stem | Forged Brass Rod/S.S. |
| 6 | O-ring | EPDM 70 Shore |
| 7 | Gland Packing | PTFE |
| 8 | Gland | Machined Brass Rod |
| 9 L | Lever Handle | Z.P. Steel Varnished ,PVC Sleeve |
| 10 L | Screw Nut | Stainless Steel |
| 11 T | T Handle | Aluminium |
| 12 T | Handle Screw | Zinc-plated Steel |
| 13 T | Name Plate | POM |
| 14 | Filter | Stainless Steel |
| 15 | Washer | PTFE |
| 16 | Filter End | Forged Brass |
● Certificates
● Company Profiles
TASAN,one of the best worldwide brand of Flow Tech products. Manufacturing with the glorious history over 30 years, We promise to customers the 7 years quality warranty and the cooperation with the best known insurance company PICC for international quality accident. Ensure the most cost-effective products and safeguard service for our agents worldwide. Our success lies in the satisfaction of each of our valued customers.
TASAN,insisting 100% original own-design,Long-term strategic partnership with the famous European valve manu facturers and the registered laboratories for R&D and testing.
TASAN,has an excellent international team of marketing.
Join in TASAN, we must be your best choice.
● Tasan's Motto
We Never Stop Pursuing Perfection
● Tasan's Products:
Valvas And Fittings For Construction Work And Industrial Equipment,Sanitary Ware.
● Tasan's Market:
Overseas And Domestic
● Tasan's Sales Methods:
BRAND Agency,OEM,ODM
● Factory Construction Area:
900.000 Sq.ft.
● Research And Development Team:
20 Research And Design Specialists.
● SALES NETWORK
More Than 45 Countries Including The US, Canada, Germany, the Uk, The Netherlands,ltaly, Russia,dubai
● Our Package Details
TASAN logo forged in valve body.
TASAN logo stamped or printed on handle.
Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
PE plastic ECO bag.
Product spec. label sticked on the side of master carton.
TASAN special packing tape.
Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
● FAQ
Q: How long is your product guarantee period?
A: We have Seven-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".
Q: Can you accept OEM and ODM?
A: TASAN has our own BRAND Agency. OEM and ODM do as well
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
