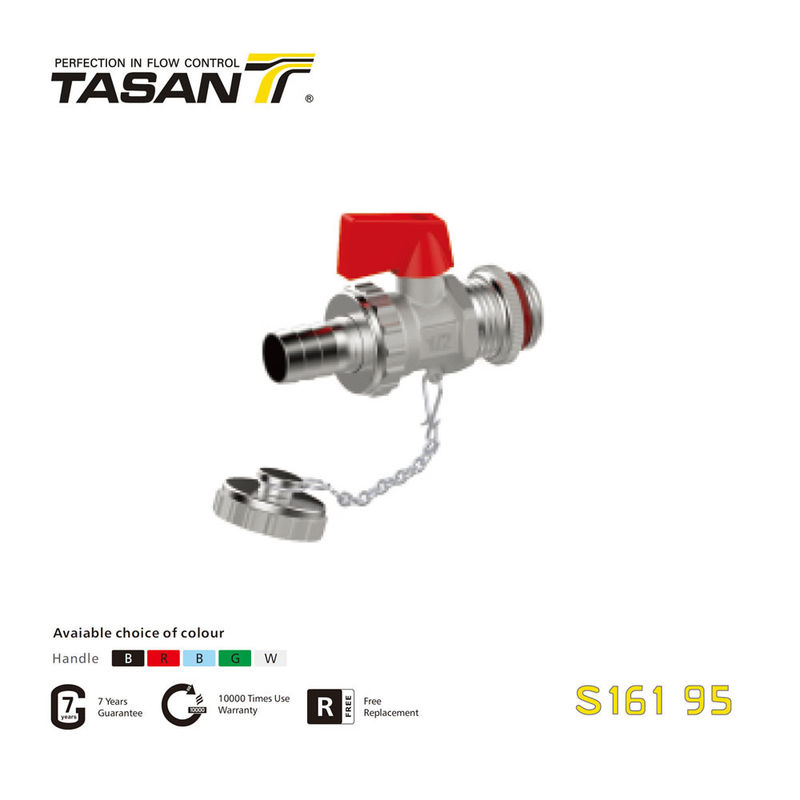

• S161 95  Brass Boiler Valve  ISO 228 Thread 232 Psi With Aluminium L Handle
S161 95  Brass Boiler Valve  ISO 228 Thread 232 Psi With Aluminium L Handle

S161 95 Brass Boiler Valve ISO 228 Thread 232 Psi With Aluminium L Handle

Product Details:

Place of Origin: China
Brand Name: TASAN
Certification: CE
Model Number: S161 95

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs Per Week
Get Best Price Contact Now

Detail Information

Product Name: Brass Boiler Valve Material: Brass
Port Size: 3/8''~3/4'' Working Temperature Min./Max.: From -10 ℃ To +120 ℃ (from 14℉ To 248℉)
Pressure Rating:: 16 Bar Thread: ISO 228「equivalent To DIN EN 10226-1 And BS21」
Power: Manual Opening/closing: Test 10,000 Times
Handle Type: L Type Aluminium Handle Ball Seat Materila: PTFE

Product Description

S616 95 Brass Boiler Valve ISO 228 Thread 232 Psi With Aluminium L Handle



Descriptions:

Nickel-plated Forged brass body

Chrome-plated Machined brass/S.S. ball *

Available Size: 3/8''~3/4"

Pressure rating: 16Bar

Working temperature Min./Max.: From -10 ℃ To +120 ℃ (from 14℉ To 248℉)

Opening/closing Test : 10,000 times

Chain: Iron with nickel plated; Brass with nickel plated available as well.

Outlet: Brass ; Stainless Steel available as well.

Threads: ISO 228「equivalent to DIN EN 10226-1 and BS21」

The thread, color of handle, materials, etc. can be customized.

Part Code Size Working Prssuer
Bar
Pcs/Carton
S16195N302 3/8’’ 16 160
S16195N303 1/2’’ 16 160
S16195N304 3/4’’ 16 100



S161 95  Brass Boiler Valve  ISO 228 Thread 232 Psi With Aluminium L Handle 0

  • Details

​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Valve Ball: Smooth and wear resisiting, with good sealing performance.

Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.

O-ring: NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.

Chain: Iron with nickel plated; Brass with nickel plated available as well.

Outlet: Brass; Stainless Steel available as well.





● Certificates



S161 95  Brass Boiler Valve  ISO 228 Thread 232 Psi With Aluminium L Handle 1





● Company Profiles



TASAN,one of the best worldwide brand of Flow Tech products. Manufacturing with the glorious history over 30 years, We promise to customers the 7 years quality warranty and the cooperation with the best known insurance company PICC for international quality accident. Ensure the most cost-effective products and safeguard service for our agents worldwide. Our success lies in the satisfaction of each of our valued customers.
TASAN,insisting 100% original own-design,Long-term strategic partnership with the famous European valve manu facturers and the registered laboratories for R&D and testing.
TASAN,has an excellent international team of marketing.
Join in TASAN, we must be your best choice.



Tasan's Motto

We Never Stop Pursuing Perfection


Tasan's Products:
Valvas And Fittings For Construction Work And Industrial Equipment,Sanitary Ware.


Tasan's Market:
Overseas And Domestic


Tasan's Sales Methods:
BRAND Agency,OEM,ODM



Factory Construction Area:
900.000 Sq.ft.


Research And Development Team:
20 Research And Design Specialists.


SALES NETWORK
More Than 45 Countries Including The US, Canada, Germany, the Uk, The Netherlands,ltaly, Russia,dubai



● Our Package Details



TASAN logo forged in valve body.

TASAN logo stamped or printed on handle.

Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.

PE plastic ECO bag.

Product spec. label sticked on the side of master carton.

TASAN special packing tape.

Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.





FAQ



Q: How long is your product guarantee period?

A: We have Seven-year guarantee and 24 hours full-time service.



Q: What is your MOQ?

A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".



Q: Can you accept OEM and ODM?

A: TASAN has our own BRAND Agency. OEM and ODM do as well



Q: How long is your delivery time?

A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
