• VB202 41T Brass TSP Ball Valve With Swivel Nut And Butterfly Aluminium Handle  PN 20Bar

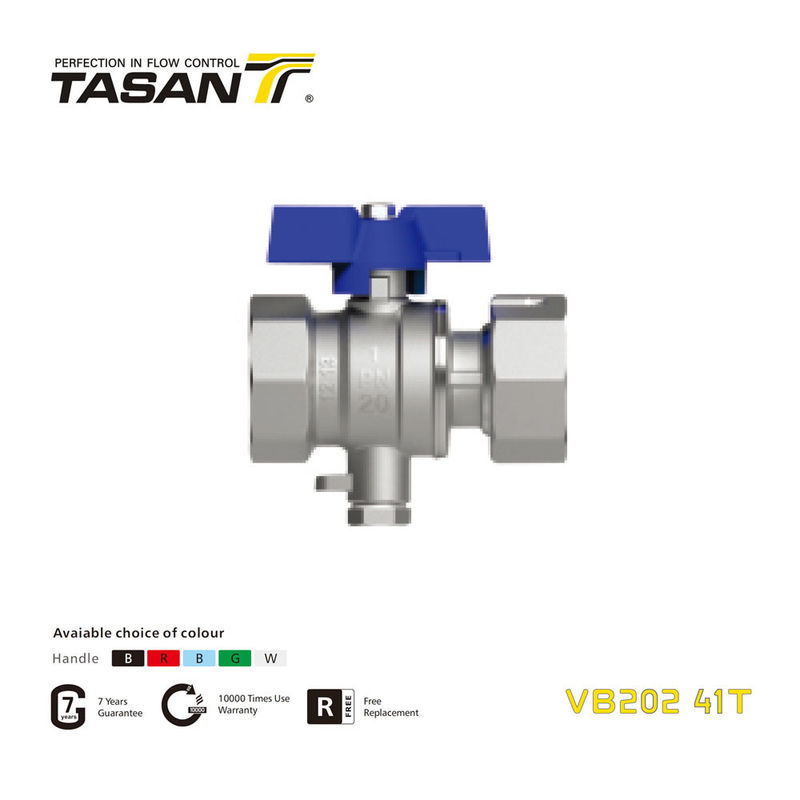

VB202 41T Brass TSP Ball Valve With Swivel Nut And Butterfly Aluminium Handle  PN 20Bar

VB202 41T Brass TSP Ball Valve With Swivel Nut And Butterfly Aluminium Handle PN 20Bar

Product Details:

Place of Origin: China
Brand Name: TASAN
Certification: CE
Model Number: VB202 41T

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs Per Week
Get Best Price Contact Now

Detail Information

Product Name: Brass TSP Ball Valve With Swivel Nut Material: Brass
Connection Type: Female X Female Available Size: 3/4''x 3/4''; 1''x1''
Handle Type: T Type Handle Material: Aluminium
Ball Seat: PTFE Working Pressure: 20Bar
Power: Manual Opening/closing Test: 10,000 Times
Working Temperature Min./Max.: From -10 ℃ To +120 ℃ Thread: ISO 228「equivalent To DIN EN 10226-1 And BS21」

Product Description

VB202 41t  Brass TSP Ball Valve With Swivel Nut



Descriptions:

Nickel-plated Forged brass body

Chrome-plated Machined brass/S.S. ball *

Available Size: 3/4''x 3/4''; 1''x1''

Pressure rating: 20Bar

Handle: Butterfly Aluminium Handle

Working temperature Min./Max.: From -10 ℃ To +120 ℃ (from 14℉ To 248℉)

Opening/closing Test : 10,000 times

Chain: Iron with nickel plated; Brass with nickel plated available as well.

Outlet: Brass ; Stainless Steel available as well.

Threads: ISO 228「equivalent to DIN EN 10226-1 and BS21」

The thread, color of handle, materials, etc. can be customized.



Part Code Size Working Prssuer
Bar
Pcs/Carton
VB20241N204T 3/4’’ x 3/4'' 20 80
VB20241N205T 1’’ x 1'' 20 60
  •
  • Details

​Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.

Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by advanced high precision CNC machines.

Valve Ball: Smooth and wear resisiting, with good sealing performance.

Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.

Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easily aging.

O-ring: EPDM & NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.

Handle Screw Nut: TASAN Professional-Antirust handles with S.S. handle screw

VB202 41T Brass TSP Ball Valve With Swivel Nut And Butterfly Aluminium Handle  PN 20Bar 0



● Certificates



VB202 41T Brass TSP Ball Valve With Swivel Nut And Butterfly Aluminium Handle  PN 20Bar 1





● Company Profiles



TASAN,one of the best worldwide brand of Flow Tech products. Manufacturing with the glorious history over 30 years, We promise to customers the 7 years quality warranty and the cooperation with the best known insurance company PICC for international quality accident. Ensure the most cost-effective products and safeguard service for our agents worldwide. Our success lies in the satisfaction of each of our valued customers.
TASAN,insisting 100% original own-design,Long-term strategic partnership with the famous European valve manu facturers and the registered laboratories for R&D and testing.
TASAN,has an excellent international team of marketing.
Join in TASAN, we must be your best choice.



Tasan's Motto

We Never Stop Pursuing Perfection


Tasan's Products:
Valvas And Fittings For Construction Work And Industrial Equipment,Sanitary Ware.


Tasan's Market:
Overseas And Domestic


Tasan's Sales Methods:
BRAND Agency,OEM,ODM



Factory Construction Area:
900.000 Sq.ft.


Research And Development Team:
20 Research And Design Specialists.


SALES NETWORK
More Than 45 Countries Including The US, Canada, Germany, the Uk, The Netherlands,ltaly, Russia,dubai



● Our Package Details



TASAN logo forged in valve body.

TASAN logo stamped or printed on handle.

Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.

PE plastic ECO bag.

Product spec. label sticked on the side of master carton.

TASAN special packing tape.

Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.





FAQ



Q: How long is your product guarantee period?

A: We have Seven-year guarantee and 24 hours full-time service.



Q: What is your MOQ?

A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".



Q: Can you accept OEM and ODM?

A: TASAN has our own BRAND Agency. OEM and ODM do as well



Q: How long is your delivery time?

A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
