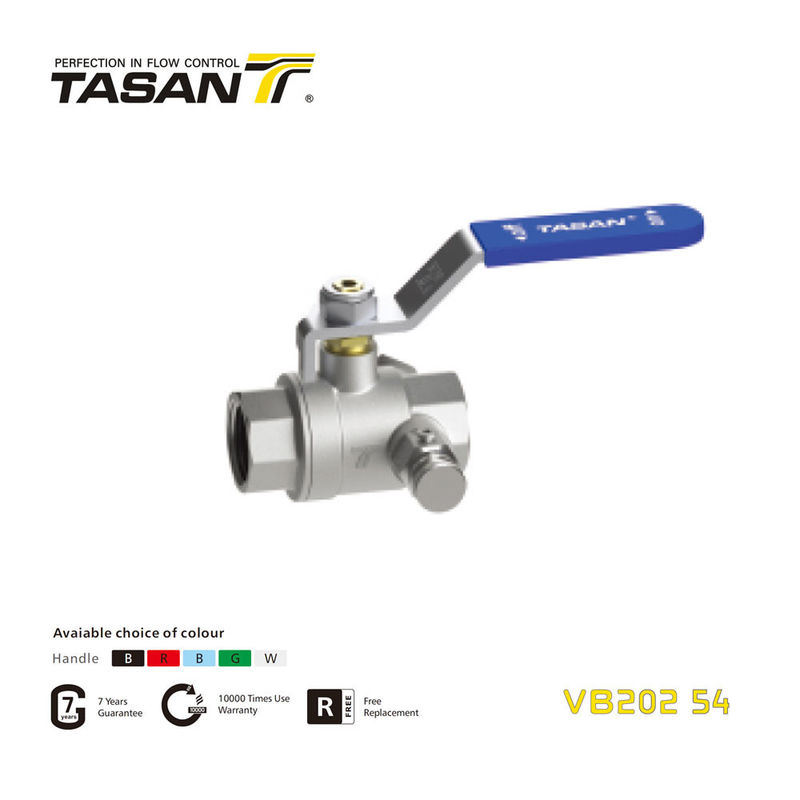

Manual VB202 54 3 4 brass ball valve With Drain Cock Female X Female 362.5 Psi
Product Details:
| Place of Origin: | China |
| Brand Name: | TASAN |
| Certification: | CE |
| Model Number: | VB202 54 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | TASAN Standard Packing |
| Delivery Time: | 8 working Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 70000pcs Per Week |
|
Detail Information |
|||
| Product Name: | Brass Ball Valve With Drain Cock | Material: | Brass |
|---|---|---|---|
| Port Size: | 1/2''~1'' | Power: | Manual |
| Pressure Rating:: | 362.5 Psi | Connection Type: | Female X Female |
| Handle Type: | Lever Handle | Handle Material: | Iron Or Steel |
| Ball Seat: | PTFE | Opening/closing Test: | 10,000 Times |
| Thread: | DIN EN 10226-1 And BS21 | Working Temperature Min./Max.: | From -10 ℃ To +120 ℃ |
| Highlight: | Manual 3 4 brass ball valve,3 4inch brass ball valve,brass ball valve with drain cock |
||
Product Description
VB202 54 Brass Ball Valve With Drain Cock Female x Female 25Bar
● Descriptions:
Nickel-plated Forged brass body
Chrome-plated Machined brass/S.S. ball *
Available Size: 1/2''~1''
Pressure rating: 25 Bar(362.5 Psi)
Handle: Iron Or Steel Lever Handle
Working temperature Min./Max.: From -10 ℃ To +120 ℃ (from 14℉ To 248℉)
Opening/closing Test : 10,000 times
Threads: ISO 228「equivalent to DIN EN 10226-1 and BS21」
The thread, color of handle, materials, etc. can be customized.
| Part Code | Size | Working Prssuer Bar |
Pcs/Carton |
| VB20254N203 | 1/2'' | 25 | 80 |
| VB20254N204 | 3/4'' | 25 | 60 |
| VB20254N205 | 1'' | 25 | 40 |
- ● Details
Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Valve Ball: Smooth and wear resisiting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
O-ring: EPDM & NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.
Handle Screw Nut: TASAN Professional-Antirust handles with S.S. handle screw
● Certificates
● Company Profiles
TASAN,one of the best worldwide brand of Flow Tech products. Manufacturing with the glorious history over 30 years, We promise to customers the 7 years quality warranty and the cooperation with the best known insurance company PICC for international quality accident. Ensure the most cost-effective products and safeguard service for our agents worldwide. Our success lies in the satisfaction of each of our valued customers.
TASAN,insisting 100% original own-design,Long-term strategic partnership with the famous European valve manu facturers and the registered laboratories for R&D and testing.
TASAN,has an excellent international team of marketing.
Join in TASAN, we must be your best choice.
● Tasan's Motto
We Never Stop Pursuing Perfection
● Tasan's Products:
Valvas And Fittings For Construction Work And Industrial Equipment,Sanitary Ware.
● Tasan's Market:
Overseas And Domestic
● Tasan's Sales Methods:
BRAND Agency,OEM,ODM
● Factory Construction Area:
900.000 Sq.ft.
● Research And Development Team:
20 Research And Design Specialists.
● SALES NETWORK
More Than 45 Countries Including The US, Canada, Germany, the Uk, The Netherlands,ltaly, Russia,dubai
● Our Package Details
TASAN logo forged in valve body.
TASAN logo stamped or printed on handle.
Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.
PE plastic ECO bag.
Product spec. label sticked on the side of master carton.
TASAN special packing tape.
Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.
● FAQ
Q: How long is your product guarantee period?
A: We have Seven-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".
Q: Can you accept OEM and ODM?
A: TASAN has our own BRAND Agency. OEM and ODM do as well
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
