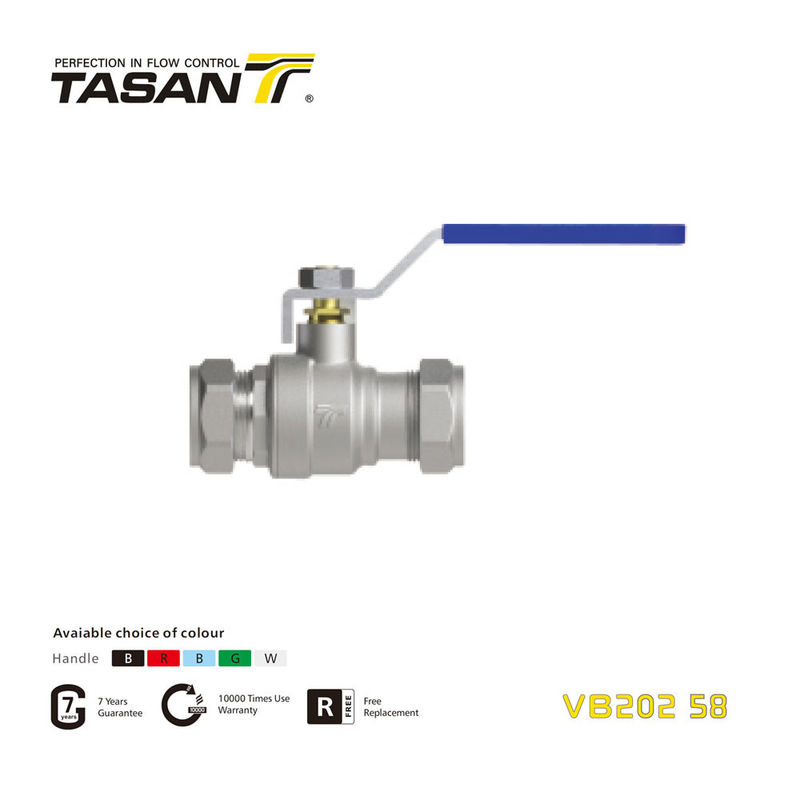

VB202 58 Brass Ball Valve With Compression End And Lever Handle 232 Psi
Product Details:
| Place of Origin: | China |
| Brand Name: | TASAN |
| Certification: | CE |
| Model Number: | VB202 58 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | TASAN Standard Packing |
| Delivery Time: | 8 working Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 70000pcs Per Week |
|
Detail Information |
|||
| Product Name: | Brass Ball Valve With Compression End | Material: | Brass |
|---|---|---|---|
| Power: | Manual | Available Size: | 15mm ;22mm ; 28mm |
| Working Pressure: | 16 Bar(232 Psi) | Handle Type: | Lever Handle |
| Handle Material: | Iron Or Steel | Opening/closing Test: | 10,000 Times |
| Thread: | ISO 228 | Working Temperature Min./Max.: | From -10 ℃ To +120 ℃ |
| Highlight: | Lever Handle Brass Ball Valve,Compression End Brass Ball Valve,232 Psi Brass Ball Valve |
||
Product Description
VB202 58 Brass Ball Valve With Compression End And Lever Handle PN25
● Descriptions:
Nickel-plated Forged brass body
Chrome-plated Machined brass/S.S. ball *
Available Size: 15mm ;22mm ; 28mm
Pressure rating: 16 Bar(232 Psi)
Handle: Iron Or Steel Lever Handle
Working temperature Min./Max.: From -10 ℃ To +120 ℃ (from 14℉ To 248℉)
Opening/closing Test : 10,000 times
Threads: ISO 228「equivalent to DIN EN 10226-1 and BS21」
The thread, color of handle, materials, etc. can be customized.
| Part Code | Size | Working Prssuer Bar |
Pcs/Carton |
| VB20258N201 | 15mm | 16 | 80 |
| VB20258N202 | 22mm | 16 | 60 |
| VB20258N203 | 28mm | 16 | 40 |
- ● Details
Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Valve Ball: Smooth and wear resisiting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
O-ring: EPDM & NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.
Handle Screw Nut: TASAN Professional-Antirust handles with S.S. handle screw
