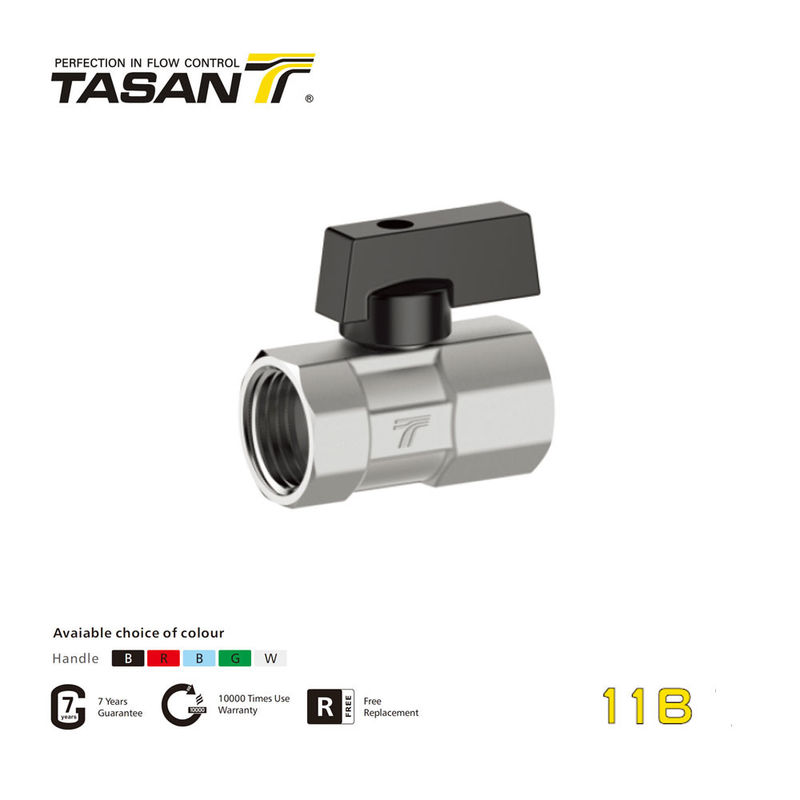

• PN25Bar 3/4'' Brass Ball Valve Small Ball Valve Chrome Plated 11B Leakage Proof
PN25Bar 3/4'' Brass Ball Valve Small Ball Valve Chrome Plated 11B Leakage Proof

PN25Bar 3/4'' Brass Ball Valve Small Ball Valve Chrome Plated 11B Leakage Proof

Product Details:

Place of Origin: China
Brand Name: TASAN
Certification: CE
Model Number: 11B

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: TASAN Standard Packing
Delivery Time: 8 working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs Per Week
Get Best Price Contact Now

Detail Information

Product Name: Brass Ball Valve Water Mini Ball Valve PN25Bar Female X Female Material: Brass
Port Size: 1/4"-3/4" Connection Type: Female X Female
Working Temperature Min./Max.: -0 ℃ To +90 ℃ Pressure Rating:: 362.5 Psi
Thread: DIN EN 10226-1 And BS21 Power: Manual
High Light:

PN25Bar Brass Ball Valve

,

PN25Bar Small Ball Valve

,

3 4 brass ball valve Leakage Proof

Product Description

11B Brass Ball Valve Water Minin Ball Valve PN25Bar Female X Female

  • Technical Standard
  1. Item: 12F Brass Water Minin Ball Valve
  2. Nominal Pressure: 25 Bar(362.5 Psi)
  3. Working temperature Min./Max. From -0℃ To +90℃
  4. Threads: ISO 228(equivalent to DIN259 and BS2779)
  5. Structure: Ball
  6. Size: 1/4’’ ~ 3/4’’
  7. Material: Brass or can be customized
  8. Handle Material: Aluminum
  9. Handle Type: L handle
  10. Connection Type: Female x Female

*The thread, color of handle, materials, etc. can be customized.

  • Details

Brass Valve Body: High density forging, no blister, no air holes, no leakages. Made by special highprecision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precisionCNC machines.
Valve Ball: Smooth and wear resisting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use withoutdeformation, fracture.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is noteasy aging.
Handle: Aluminum L Handle Plated with paint, the surface is coated against corrosion, the coating is thickened,comfortable using.
O-ring: NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easyto leak.



PN25Bar 3/4'' Brass Ball Valve Small Ball Valve Chrome Plated 11B Leakage Proof 0



Size 1/4’’ to 3/4’’ Application Water,Gas,Oil
Power Manual Colour Chrome-plated





● Structure Charts

PN25Bar 3/4'' Brass Ball Valve Small Ball Valve Chrome Plated 11B Leakage Proof 1



Part Code Size A B C Pcs/Carton
11BN701 1/4’’ 38 26 19 400
11BN702 3/8’’ 38 26 19 320
11BN703 1/2’’ 43 28 19 240
11BN704 3/4’’ 50 31 19 160

Structure Charts
1 Body Forged Brass
2 Seats PTFE
3 Ball Machined Brass Rod
4 Body End Machined Brass Rod
5 Stem Machined Brass Rod
6 O-ring EPDM 70 Shore
7 L Handle Aluminium
8 Handle Screw Nickel-plated steel
* 11 Series Are Nickel-plated Body
* 12 Series Are Chrome-plated,Polished Body







● Certificates



PN25Bar 3/4'' Brass Ball Valve Small Ball Valve Chrome Plated 11B Leakage Proof 2





● Company Profiles



TASAN,one of the best worldwide brand of Flow Tech products. Manufacturing with the glorious history over 30 years, We promise to customers the 7 years quality warranty and the cooperation with the best known insurance company PICC for international quality accident. Ensure the most cost-effective products and safeguard service for our agents worldwide. Our success lies in the satisfaction of each of our valued customers.
TASAN,insisting 100% original own-design,Long-term strategic partnership with the famous European valve manu facturers and the registered laboratories for R&D and testing.
TASAN,has an excellent international team of marketing.
Join in TASAN, we must be your best choice.



Tasan's Motto

We Never Stop Pursuing Perfection


Tasan's Products:
Valvas And Fittings For Construction Work And Industrial Equipment,Sanitary Ware.


Tasan's Market:
Overseas And Domestic


Tasan's Sales Methods:
BRAND Agency,OEM,ODM



Factory Construction Area:
900.000 Sq.ft.


Research And Development Team:
20 Research And Design Specialists.


SALES NETWORK
More Than 45 Countries Including The US, Canada, Germany, the Uk, The Netherlands,ltaly, Russia,dubai



● Our Package Details



TASAN logo forged in valve body.

TASAN logo stamped or printed on handle.

Inner box material is a 3-layer corrugated bond paper, with clear & attractive printing.

PE plastic ECO bag.

Product spec. label sticked on the side of master carton.

TASAN special packing tape.

Master carton material is a 5-layer corrugated bond paper, with clear & attractive printing.





FAQ



Q: How long is your product guarantee period?

A: We have Seven-year guarantee and 24 hours full-time service.



Q: What is your MOQ?

A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".



Q: Can you accept OEM and ODM?

A: TASAN has our own BRAND Agency. OEM and ODM do as well



Q: How long is your delivery time?

A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
