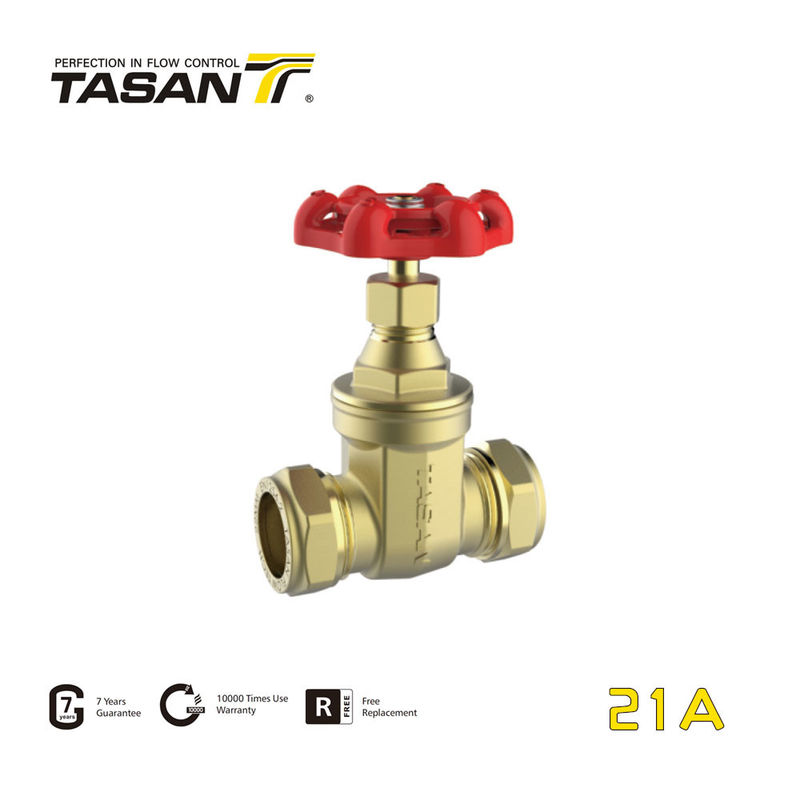

Oil Pipelines PN20 3 Inch Brass Gate Valve With End Compression 21A
Product Details:
| Place of Origin: | China |
| Brand Name: | TASAN |
| Model Number: | 21A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | TASAN Standard Packing |
| Delivery Time: | 8 working Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000pcs Per Week |
|
Detail Information |
|||
| Product Name: | Brass Brass Gate Valve With Compression End PN20 | Material: | Brass |
|---|---|---|---|
| Port Size: | 1/2"-4" | Connection Type: | Female X Female |
| Working Temperature Min./Max.: | –20°C ~120°C (-4°F~248°F) In Absence Of Steam | Pressure Rating:: | PN20/292psi -- 1/2"~4" (DN15~100mm) |
| Thread: | ISO 228 「equivalent To DIN EN 10226-1 And BS21」 | Power: | Manual |
| High Light: | PN20 3 Inch Brass Gate Valve,oil pipelines Brass Gate Valve,PN20 compression gate valve |
||
Product Description
21A Brass Brass Gate Valve With Compression End PN20
21A series gate valve is super-design.suitable for domestic and commercial plumbing system, industrial application, sanitary, heating.waterworks, oil pipelines.used for non aggressive fluid only.
● Pressure rating:
PN20/292psi -- 1/2"~4" (DN15~100mm)
● Working temperature Min./Max.:
–20°C ~120°C (-4°F~248°F) in absence of steam
● Descriptions:
Forged brass body
PN25/363psi -- 1/2"~4" (DN15~100mm)
-20°(-150°((-4°F-302° F) in absence of steam
ISO 228 「equivalent to DIN EN 10226-1 and BS21」
● Structure Charts
| Part Code | Size | A/mm | B/mm | C/mm |
| 21AS301 | 1/4’’ | 33 | 65 | 48 |
| 21AS302 | 3/8’’ | 33 | 65 | 48 |
| 21AS303 | 1/2’’ | 33 | 65 | 48 |
| 21AS304 | 3/4’’ | 36 | 68 | 55 |
| 21AS305 | 1’’ | 41 | 85 | 60 |
| 21AS306 | 11/4’’ | 45 | 93 | 77 |
| 21AS307 | 11/2’’ | 49 | 106 | 80 |
| 21AS308 | 2’’ | 56 | 124 | 90 |
| 21AS309 | 21/2’’ | 64 | 153 | 99 |
| 21AS310 | 3’’ | 75 | 169 | 108 |
| 21AS311 | 4’’ | 83 | 199 | 129 |
| 1 | Body | High-density Forged Brass |
| 2 | Wedge Disc | High-density Forged Brass |
| 3 | Stem | Forged Brass |
| 4 | Washer | PTFE |
| 5 | Bonnet | Forged Brass |
| 6 | Lock Nut | Machined Brass Rod |
| 7 | Packing Nut | Machined Brass Rod |
| 8 | Gland Packing | PTFE |
| 9 | Handwheel | Aluminum |
| 10 | Name Plate | Aluminum |
| 11 | Wheel Nut |
Stainless Steel |
| 12 | Compression Ring | H62 Brass |
| 13 | Compression Nut | Forged Brass |
The thread, color of handle, materials, etc. can be customized.
