Nickel Plated Forged 1/4 Inch Brass Gas Valve Full Flow DN8~25mm 35B
Product Details:
| Place of Origin: | China |
| Brand Name: | TASAN |
| Certification: | CE |
| Model Number: | 35B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | TASAN Standard Packing |
| Delivery Time: | 8 working Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 70000pcs Per Week |
|
Detail Information |
|||
| Product Name: | Brass Gas Ball Valve,Full Flow | Material: | Brass |
|---|---|---|---|
| Port Size: | 1/4"-1" | Connection Type: | Female X Male |
| Working Temperature Min./Max.: | –20°C ~60°C (-4°F~140°F) | Pressure Rating:: | PN5/72.5psi -- 1/4"~1" (DN8~25mm) |
| Thread: | Female Threads: ISO 7/1 Rp Parallel ; Male Threads: ISO 7/1 R Taper | Power: | Manual |
| High Light: | Brass Gas Valve DN8,Nickel Plated 1/4 Brass Gas Valve,Nickel Plated 1 4 inch gas valve |
||
Product Description

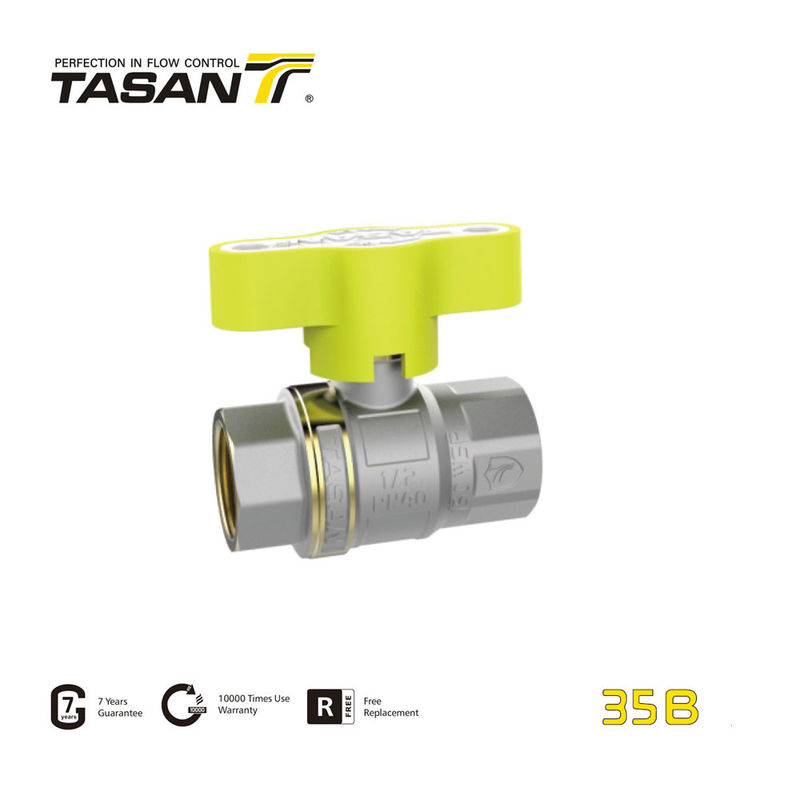

35B Brass Gas Ball Valve, Full Flow
35series Gas BV is the excellent quality design in accordance with the European standard EN 331: 1998,suitable for the gas of Natural gas,Town gas and Liquid gas.
● Pressure rating:
PN5/72.5psi -- 1/4"~1" (DN8~25mm)
● Working temperature Min./Max.:
–20°C ~60°C (-4°F~140°F)
● Descriptions:
Nickel-plated Forged brass body
Chrome-plated Machined brass/S.S. Ball
Full Flow opening
TASAN Blowout-proof stem - Minimal 10000 times of use
Designed with adjustable gland and EPDM O-ring(1/2"~4")
Male threads: ISO 7/1 R taper
Female threads: ISO 7/1 Rp parallel
● Structure Charts
| Part Code | Size | A/mm | B/mm | C/mm |
| 35BNS301 | 1/4’’ | 42 | 38 | 52 |
| 35BNS302 | 3/8’’ | 42 | 39 | 52 |
| 35BNS303 | 1/2’’ | 55 | 41 | 52 |
| 35BNS304 | 3/4’’ | 61 | 46 | 56 |
| 35BNS305 | 1’’ | 74 | 50 | 62 |
| 1 | Body | High-density Forged Brass |
| 2 | Seats | Pure PTFE (Polytetrafluoroethylene) |
| 3 | Ball | Forged Brass/S.S.* |
| 4 | Body Cap | Forged Brass |
| 5 | Stem | Machined Brass Rod/S.S.* |
| 6 | O-ring | EPDM 70 Shore |
| 7 | Gland Packing | Pure PTFE (Polytetrafluoroethylene) |
| 8 | Gland | Machined Brass Rod |
| 9 | Lever Handle | Z.P. Steel Varnished, PVC Sleeve |
| 10 | Screw Nut | Stainless Steel |
| 11 | T Handle | Aluminum |
| 12 | Name Plate | POM |
| 13 | Handle Screw | Nickel-plated Steel |
The thread, color of handle, materials, etc. can be customized.
