1/4 " To 2 " Brass Ball Valve Male X Female 25 Bar With Iron Lever Handle
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export cartons |
| Delivery Time: | 30 days after receiving down payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000PCS/month |
|
Detail Information |
|||
| Name: | Brass Ball Valve | Material: | Brass |
|---|---|---|---|
| Size: | 1/4 " To 2 " | Application: | Water |
| Handle: | Iron Lever Handle | Pressure: | 25 Bar |
Product Description
1/4 " To 2 " Brass Ball Valve Male X Female 25 Bar With Iron Lever Handle
Description
Working Pressure of Brass Ball Valve: 25bar (362.5 psi)
Working Temperature of Brass Ball Valve from -10 ℃ to +120 ℃ (from 14℉ to 248℉)
Thread ISO228 (equivalent to DIN 259 and BS2779)
Opening/closing Test 10,000 times
Parameters
Full flow Male x Female brass ball valves with Iron lever handle (different handle types).
The thread, color of handle, materials, etc. can be customized.
| Dimension mm | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| A | 48.4 | 56 | 65 | 76 | 85 | 99 |
| B | 43.1 | 46.5 | 54.5 | 63 | 68 | 82.5 |
| C | 112.2 | 116 | 132.5 | 167.5 | 172.5 | 199.5 |
| D | G1/2" | G3/4" | G1" | G1-1/4" | G1-1/2" | G2" |
| E | 14 | 18 | 23 | 29 | 35.5 | 45.5 |
| PN | 16 | 25 | 25 | 25 | 25 | 25 |
Details of Brass Ball Valve
1, Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
2, Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
3, Valve Ball: Smooth and wear resisiting, with good sealing performance.
4, Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
5, Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
6, Handle: The surface is painted red against corrosion, comfortable using.
7, O-ring: NBR & FKM, made of imported raw material, small friction coefficient, long service life and not easy to leak.
8, Stainless Steel Locknut: Internal design of anti-loose, can be used for long time.

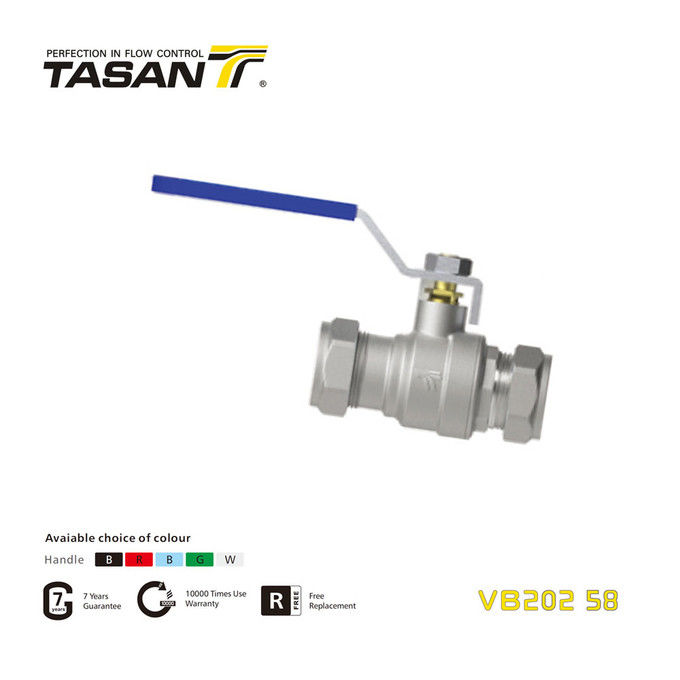

Picture of Brass Ball Valve
FAQ
Q: How long is your product guarantee period?
A: We have three-year guarantee and 24 hours full-time service.
Q: What is your MOQ?
A: We have no MOQ. We have a large warehouse and we promise "Instant Order, Immediate Delivery and No MOQ".
Q: Can you accept OEM?
A: Double-Lin is a company with self-owned brand, and we are promoting our brand in the world, so we will not accpet OEM.
Q: How long is your delivery time?
A: For the items if we have enough stocks, we can send to you immediately. For mass production, we can promise 30-35 days.
